Properties & technical data

A module unit is made up of a terminal module and an electronics module. These are connected using a secure sliding and locking mechanism. The terminal module combines clamps, a fixture for the electronics module and the backplane bus connector. This means only the electronics module is replaced during servicing, by simply pulling it out of the terminal module. The wiring and mounting on the 35 mm DIN profile rail remain as they are. The electronics modules can be supplied with voltage and/or divided into separate potential groups by using additional supply modules. The stepped arrangement of terminals on the terminal module using proven spring-clamp technology with highly reliable contacting enables fast, clear and safe wiring. The integrated status LEDs and the labeling strip on the front of the electronics modules ensure unique, channel-specific assignment and clear display of the channel status. The backplane bus concept with a speed of 48 Mbit/s also makes for very short response times.

  • Bus coupler Bus coupler
  • Digital input and output modules Digital input and output modules
  • Analog input and output modules Analog input and output modules
  • Safety modules Safety modules
  • Function modules Function modules
  • Modules for power supply, distribution and accessories

Bus coupler

Close table
Module Description Properties Data sheet
OCE12C Bus coupler
  • EtherCat® (SBusPLUS) bus coupler
 To data sheet
OCC11C Bus coupler
  • CAN (SBus) bus coupler
 To data sheet
We have stored a table for you here.

Digital input and output modules

Close table
Module Description Properties Data sheet
ODI24C Digital input module
  • 2 × DI
  • DC 24 V
  • Input filter time delay parameterizable (2 μs – 3 ms)
  • ETS function with µs time stamp
 To data sheet
ODI42C Digital input module
  • 4 × DI (fast)
  • DC 24 V
  • Input filter time delay parameterizable (2 μs – 4 ms)
 To data sheet
ODI43C Digital input module
  • 4 × DI
  • DC 24 V
  • 2/3-wire connection
 To data sheet
ODI81C Digital input module
  • 8 × DI
  • DC 24 V
 To data sheet
ODO21C Digital output module
  • 2 × DO
  • DC 30 V
  • AC 230 V
  • 3 A
  • Electrically isolated for each channel
  • Relay
 To data sheet
ODO41C Digital output module
  • 4 × DO
  • DC 24 V
  • 2 A
 To data sheet
ODO81C Digital output module
  • 8 × DO
  • DC 24 V
  • 0.5 A
To data sheet
ODO82C Digital output module
  • 8 × DO
  • DC 24 V
  • 0.5 A
  • NPN
 To data sheet
We have stored a table for you here.

Analog input and output modules

Close table
Module Description Properties Data sheet
OAI42C Analog input module
  • 4 × AI
  • 16 bit
  • Current 0(4) – 20 mA
 To data sheet
OAI41C Analog input module
  • 4 × AI
  • 16 bit
  • Voltage -10 V – +10 V
 To data sheet
OAI44C Analog input module
  • 2 × AI
  • 16 bit
  • Voltage -80 mV – +80 mV
  • TC type J, K, N, R, S, T, B, C, E, L
  • Reduced parameter bytes
 To data sheet
OAI45C Analog input module
  • 4 × AI
  • 16 bit
  • Resistance 0 – 3000 ohms
  • 2-, 3- and 4-wire resistance measurement
  • Pt100, Pt1000, NI100 and NI1000 resistance temperature transmitters
 To data sheet
OAO42C Analog output module
  • 4 × AO
  • 12 bit
  • Current 0(4) – 20 mA
 To data sheet
OAO41C Analog output module
  • 4 × AO
  • 16 bit
  • Voltage -10 V – +10 V
 To data sheet
We have stored a table for you here.

Safety modules

Close table
Module Description Properties Data sheet
OFI41C Safe digital input
  • 4 × SDI
  • DC 24 V
  • 0.5 A
  • Safety
 To data sheet
OFO41C Safe digital output
  • 4 × SDO
  • DC 24 V
  • 0.5 A
  • Safety
 To data sheet
We have stored a table for you here.

  • FSoE I/O modules with 4 safe inputs and outputs each
  • for evaluation and logical linkingconnect the modules to a safety controller via the bus coupler

Function modules

Close table
Module Description Properties Data sheet
OSM11C Strain gauge analog input
  • Direct connection of a full resistance bridge (strain gauge) or load cell
  • 4- or 6-wire connection
  • 16 (24)-bit resolution
  • Absolute accuracy basic error ± 0.1% (± 0.01%)
  • 2V5, 5 V, 7V5, 10 V and 12 V onboard power supply
 To data sheet
OSM12C SSI module
  • SSI encoder, master or slave operation
  • Encoder frequency 125 kHz – 2 MHz
  • µs time stamp function
  • Alarm function
  • Diagnostic function
 To data sheet
OSM13C Counter module
  • 1 × counter 32 bit (AB), DC 24 V
  • Up to 400 kHz
  • 1 × DO, DC 24 V for comparison function
  • 0.5 A
 To data sheet
OSM14C Counter module
  • 1 × counter 32 bit (AB), DC 5 V
  • Up to 2 MHz (differential signal)
  • Comparison function
 To data sheet
OEM12C Energy measurement module
  • AI 1 × 3 Ph, 230 / 400 V
  • 3-phase and N conductor
  • Current range 1 A (can be extended using current transformer)
  • Remanent storage of energy values; diagnostic function
  • 24-bit resolution for measured value
  • Available measured variables: Voltage, current, electrical power, electrical work, harmonics, phase shift cos φ and frequency
 To data sheet
ORS11C RS422/485 interface
  • RS422/485 interface
  • ASCII, STX/ETX, 3964(R) and Modbus RTU (master, slave) protocols
 To data sheet
We have stored a table for you here.

Modules for power supply, distribution and accessories

Close table
Module Description Properties Data sheet
OPV81C Potential distributor
  • 8 × DC 24 V terminals
 To data sheet
OPV82C Potential distributor
  • 8 × DC 0 V terminals
 To data sheet
OPV41C Potential distributor
  • 4 × DC 24 V terminals
    4 × DC 0 V terminals
 To data sheet
OPM11C Power supply module
  • Input voltage DC 24 V
  • 10 A
  • Polarity reversal protection
  • Overvoltage protection
 To data sheet
OZB11C Bus cover
  • 1 piece
 To data sheet
OZS11C Shield bus carrier
  • 10 pieces
 To data sheet
We have stored a table for you here.

Benefits & areas of application

Areas of application

SEW image

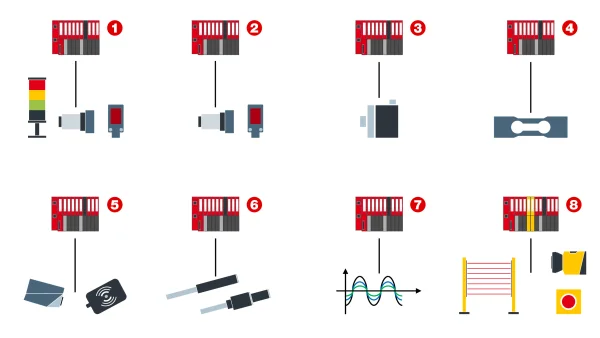

Our I/O modules can be used whenever you are looking to integrate actuators, sensors or other field units into your automation network.

Application details

Close table
Assignment to above image Schematic Examples of applications Designation Possible field bus units / technologies
1 Presence monitoring / reference initiators Presence monitoring / reference initiators
(binary signals)		 ODI..C
ODO..C		 Optoelectronic sensors, ultrasound sensors, inductive/capacitive sensors, laser light sensors, print mark sensors, light columns and fluid sensors
2 Height monitoring / distance measuring Height monitoring / distance measuring
(analog signals)		 OAI..C
OAO..C		 Optoelectronic distance measuring devices, ultrasound sensors and inertial sensors
3 Evaluating encoder signals Evaluating encoder signals
(counter modules / SSI module)		 OSM12C
OSM13C
OSM14C		 Rotary encoders and encoders
4 Load cell / strain gauge Load cell / strain gauge OSM11C Strain gauge
5 Serial interfaces Serial interfaces ORS11C Laser light sensors, optoelectronic distance measuring devices, optical identification sensors and RFID
6 Temperature measurement Temperature measurement OAI45C Pt100, Pt1000, Ni100 and Ni1000 temperature sensors
7 Energy measurement Energy measurement OEM12C Three-phase grids
8 Hazardous point protection with hand and presence detection / functional safety Hazardous point protection with hand and presence detection / functional safety OFI41C
OFO41C		 Safety light grid, safety scanner, safety switch, safety locking device and emergency stop
We have stored a table for you here.

Communication

EtherCAT® and CANopen interface modules are available for data exchange when using this solution. The I/O modules are equipped with a power supply module and support up to 64 electronics modules on the backplane bus.

Certifications / conformity

  • CE (European Economic Area)
  • RoHS (China)
  • cULus (USA, Canada)
  • UKCA (United Kingdom)
  • WEEE (European Economic Area)
